■Transportation System MENU TOP
Applications
Features
| Stock No. | Model | øD（mm） | L(mm) | M(mm) | W(mm) | A(mm) | Driving Motor | Processing Capacity |
|---|---|---|---|---|---|---|---|---|
| S963601 | KKBH-1-8 | ø76.3 | 800 | 150 | 150 | 110 | 3Phase 200V 25W |
120 kg/h |
| S963602 | KKBH-1-10 | 1000 | ||||||
| S963603 | KKBH-1-12 | 1200 | ||||||
| S963604 | KKBH-1-14 | 1400 | ||||||
| S963605 | KKBH-1-16 | 1600 | ||||||
| S963606 | KKBH-1-18 | 1800 | ||||||
| S963607 | KKBH-1-20 | 2000 | ||||||
| S963608 | KKBH-2-8 | ø101.6 | 800 | 162 | 190 | 150 | 3Phase 200V 40W |
230 kg/h |
| S963609 | KKBH-2-10 | 1000 | ||||||
| S963610 | KKBH-2-12 | 1200 | ||||||
| S963611 | KKBH-2-14 | 1400 | ||||||
| S963612 | KKBH-2-16 | 1600 | ||||||
| S963613 | KKBH-2-18 | 1800 | ||||||
| S963614 | KKBH-2-20 | 2000 | ||||||
| S963615 | KKBH-2-22 | 2200 | ||||||
| S963616 | KKBH-2-24 | 2400 | ||||||
| S963617 | KKBH-2-26 | 2600 | ||||||
| S963618 | KKBH-2-28 | 2800 | ||||||
| S963619 | KKBH-2-30 | 3000 |
Example of Model

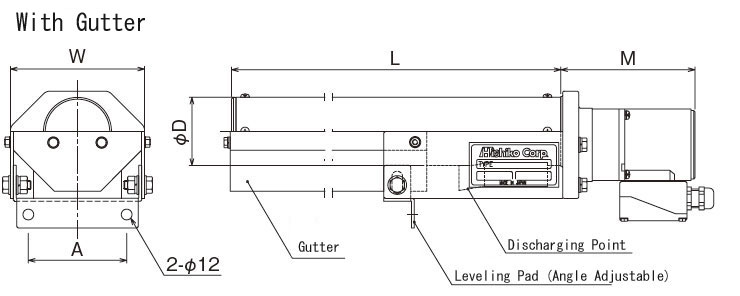

i.e.1: Ø76.3 with gutter, pipe length 1,200mm, KKBH-1G-12

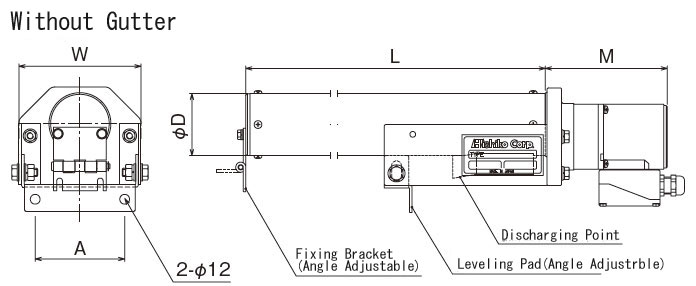

i.e.2: Ø101.6 without gutter, pipe length 2,000mm, KKBH-2-20
※Both types come with 3 meters 4 cores cabtire cable.
※Hishiko does not do wiring.
※Hishiko can prepare custom length pipe as well as standard length.
！Note！
※The capacity may change according to the type of chips and/or cutting fluid.
※ If installation angle is more than 60degree, chips or parts may not drop properly.
Please consult our sales personnel or your agent before purchase.
※The chips and/or parts whose length is more than 60mm may not transfer properly.
※This product cannot transfer viscous sludge like things.
