Drum Type Magnetic Separator　KSD

KSD

Applications

Automatically remove iron (bolt, nut, iron powder, etc.) in powder and granular material.
Used for removing iron from pulp chip, fertilizer, feedstuff, glass, crashed mineral ore, food, drug and so on.

Features

As the magnetic pole is fixed, energy is required only to rotate the outer drum which makes it economical.
Easy installation and handling with permanent magnet.
Axes on both-end are fixed.

<NOTE> Throughput Amount(ｍ³/ｈ)＝	Throughput Weight(ton/h)
	Apparent Specific Gravity

Hishiko will manufacture customized product on your request.

● 　　Magnetic Material　　●　Non-magnetic Material

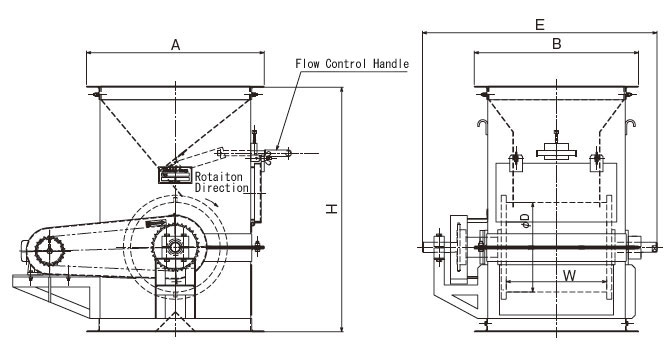

KSD図面

Stock No.	Model	Magnet Drum		Dimensions　(mm)				Amount of Throughput (m3/h)	Rotation Frequency (rpm)	Motor Capacity (kW)	Weight (kg)
Stock No.	Model	øD	W	A	B	H	E	Amount of Throughput (m3/h)	Rotation Frequency (rpm)	Motor Capacity (kW)	Weight (kg)
S950301	KSD27.30	267	300	530	490	730	700	18	43	0.2	100
S950302	KSD32.40	318	400	580	590	780	800	30	40	0.4	180
S950303	KSD32.50	318	500	580	690	780	900	40	40		220
S950304	KSD40.50	406	500	680	690	880	900	55	35		300
S950305	KSD40.100	406	1000	700	1210	880	1400	105	40		550
S950306	KSD50.60	508	600	800	800	1000	1000	80	35		430
S950307	KSD60.80	610	800	920	1120	1100	1250	155	25	0.75	730
S950308	KSD60.100		1000		1320		1470	190	20	1.5	850
S950309	KSD60.120		1200		1520		1600	240	20	1.5	1000

In case of the order, please advise following conditions.
●Type of the Material, Throughput, Apparent Specific Gravity, Granularity, Temperature, Moisture Content
●The size and quantity of iron scrap and etc.
●Layout.
