Grid Magnet　KMSS/KMSSR

KMSS

Applications

Used for removing small iron pieces such as pins and iron powder from powder and granular material.

KMSS and KMSSR should be installed at the middle or exit of duct, spout of conveyor line and so on.

Features

KMSS and KMSSR are designed so that powder touches magnetic bars uniformly.

Regular iron removal is necessary. These magnetic bars are threadably mounted on the case. Hence magnetic bars can be dismounted easily.

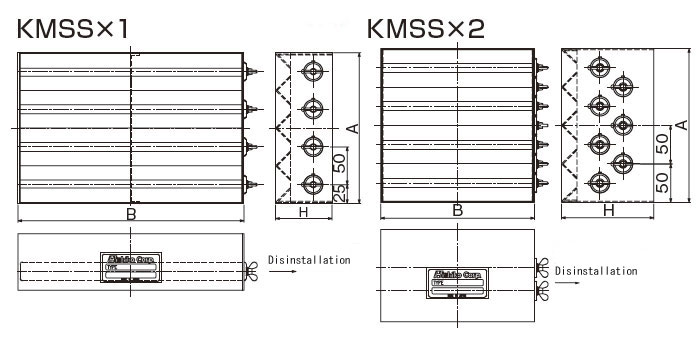

KMSS

KMSS　Maximum Flux Density　　0.1T(1,000G)

Stock No.	Model	Layer	Dimensions (mm)			The Number of Magnet Bar	Amount of Throughput (m³/h)
Stock No.	Model	Layer	A	B	H	The Number of Magnet Bar	Amount of Throughput (m³/h)
S951101	KMSS200×200×1	1	200	200	75	4	6
S951102	KMSS200×300×1		200	300		4	9
S951103	KMSS300×400×1		300	400		6	18
S951104	KMSS300×600×1		300	600		6	27
S951111	KMSS200×200×2	2	200	200	120	7	6
S951112	KMSS200×300×2		200	300		7	9
S951113	KMSS300×400×2		300	400		11	18
S951114	KMSS300×600×2		300	600		11	27

KMSSR

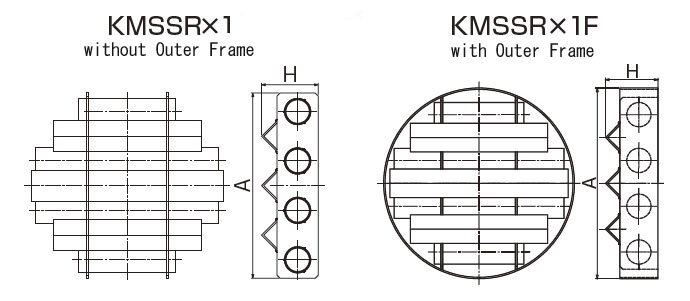

KMSSR

KMSSR　　Maximum Flux Density　0.1T（1,000G

Stock No.	Model	Layer	Outer DiameterA (mm)	HeightH (mm)	The Number of Magnet Bar	Amount of Throughput (m³/h)
S951121	KMSSR200×1	1	200	55	4	4.5
S951122	KMSSR250×1	1	250	55	5	7
S951123	KMSSR200×2	2	200	95	7	4.5
S951124	KMSSR250×2	2	250	95	9	7
S951131	KMSSR200×1F	1	200	55	4	4.5
S951132	KMSSR250×1F	1	250	55	5	7
S951133	KMSSR200×2F	2	200	95	7	4.5
S951134	KMSSR250×2F	2	250	95	9	7
