Electro Permanent Lifting Magnet　ALT

Mounted controller type,
for attracing and transporting ironwork

Lightweight ! Simple ! Compact !

ALT

Safety

Safety having no influence from power failure,disconnection and short circuit as attracting by permanent magnet during transportation.

Energy Saving

nergy saving type economizing electric consumption drastically and required conducting time is only 2 seconds at the time of ON-OFF.

Security

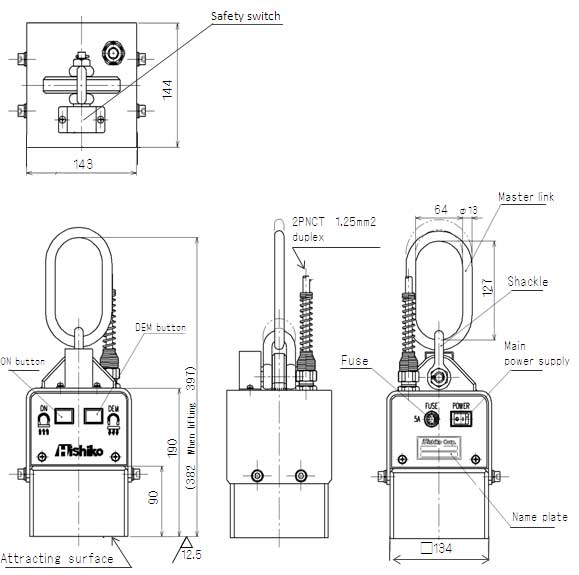

Safety Switch
安全スイッチ

◇SPECIFICATIONS

Structure	Mounted controller , 　indoor・dust-proof type
Lifting capacity	400 kgf

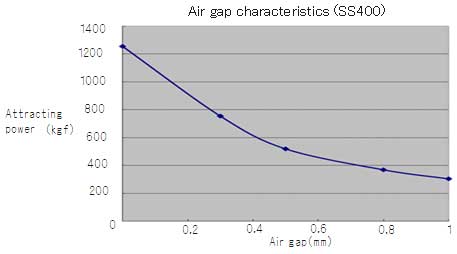

Maximum attracting power	Material：SS400 Attracting surface：▽▽▽ Thickness：Over t40mm 　Maximum attracting power when taking off in vertical direction 　Air gap　0mm　： 1200 kgf max. 　Air gap　1mm　： 300 kgf max.
Input voltage	AC　200V　50／60Hz
Output voltage	DC　180V
Output current	1.2　A
Capacity	216　W
Conducting time	2 seconds（at the time of ON・OFF）
Weight	About 15kg
Cable	2PNCT　1.25mm2　duplex　L=1m
Accessries	1.Shackle bolt　size12 　2.Master linkM-13

<Manufactured Product>

ALT-5M01 <Lifting capacity：5ton>

ALT
ALT8-26G4M01 <Lifting capacity：25ton>
