KPLF Permanent lifting magnet
* Ideally suited for lifting and carrying steel plates (milled face), partly-finished goods and press dies,etc.that weigh relatively little.
* Depending on the dimension and weight of work to be carried, several KPLF lifting magnets can be operated jointly.

Special features:
* Because no electric power is required,KPLF can operate free of power failure and power cord.
* Magnetization and demagnetization can be easily controlled byON/OFF with a handle.


Specifications:

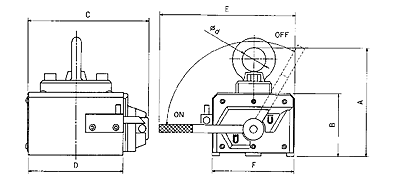

Code No. Model Dimensions (mm) Rated lift
capacity		 Weight
(kg)
A B C D E F φd
S960821 KPLF15 175 100 164 114 225 116 35 1.5KN(150kgf) 13
S960822 KPLF25 186 242 192 40 2.5KN(250kgf) 20
S960823 KPLF40 239 130 259 200 284 171 50 4KN(400kgf) 35
S960824 KPLF80 261 319 260 370 258 60 8KN(800kgf) 70
S960825 KPLF160 285 443 383 531 345 70 16KN(1600kgf) 135
