Electromagnetic Separator　KSB

KSB

Applications

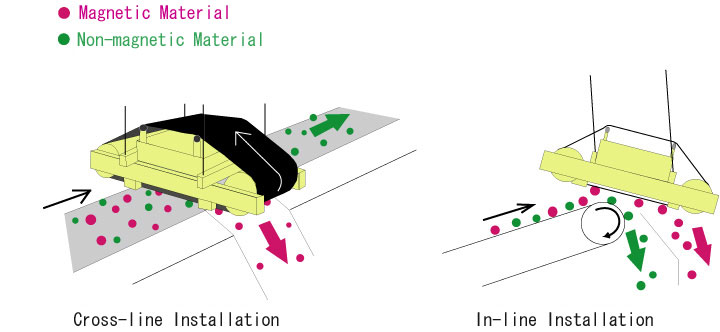

KSB is used by suspending above or setting on the conveyor belt and removes iron chips or iron lump from raw material by magnetic force.

Used for iron removal from large refuse, industrial waste, slag, ore, coal, pulp chips, casting sands, fertilizer, feeding stuff and so on.

Combination use with magnetic pulley makes iron removal more effective.

Features

KSB is capable of continuous use.

Oil cooling powerful electromagnet is applied.

KSB図面

Stock No.	Model	Belt Width(mm)	Dimensions (mm)					Magnet Dimensions (mm)		Motor Capacity (kW)	Electromagnet Capacity (kW)	Weight(kg)	Compliant Conveyor Belt Width(mm)		Recommended Rectifier
Stock No.	Model	Belt Width(mm)	W	L	H	P1	P2	L1	W1	Motor Capacity (kW)	Electromagnet Capacity (kW)	Weight(kg)	Cross-line Installation	In-line Installation	Recommended Rectifier
S950121	KSB50B	500	1034	1800	657	800	700	600	500	0.75	1.0	850	500	500	KAS8-02AM
S950122	KSB60B	600	1120	1900	700	950	790	700	600	0.75	1.2	1100	600	600	KAS8-02AM
S950123	KSB75B	750	1375	2230	850	1200	940	750	750	1.5	2.4	1500	700	750	KAS8-04AM
S950124	KSB90B	900	1530	2490	850	950	1100	900	900	1.5	3.4	2000	900	900	KAS8-08AM
S950125	KSB105B	1050	1840	2500	1100	1022	1500	1050	1050	2.2	4.7	2500	1050	1050	KAS8-08AM

※Large sizes are available on request.
