Permanent Magnetic Pulley　KPLP

KPLP

Applications

Features

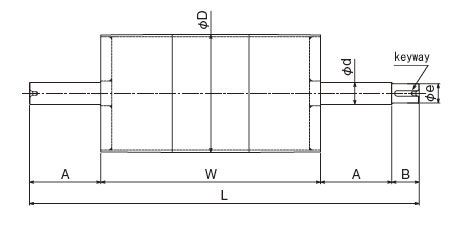

KPLP図面

Stock No.	Model	Belt Width	Dimensions　(mm)								Weight (kg)
Stock No.	Model	Belt Width	øD	W	L	A	B	ød	øe	Keyway WidthxDepth	Weight (kg)
S951001	KPLP10.25A	250	100	300	580	120	40	30	25	8×2.5	10
S951002	KPLP16.25A		162					35	30	8×4	20
S951003	KPLP22.25A		215					40	35	10×5	35
S951004	KPLP22.30A	300		350	660	130	50				45
S951005	KPLP22.35A	350		400	710						50
S951006	KPLP27.25A	250	265	300	610						60
S951007	KPLP27.30A	300		350	660			45	40	12×5	60
S951008	KPLP27.35A	350		400	710			45	40	12×5	75
S951009	KPLP32.35A	350	316	400	730	135	60	50	45	14×5.5	100
S951010	KPLP32.40A	400		450	780						110
S951011	KPLP32.45A	450		500	830						120
S951012	KPLP32.50A	500		550	880			60	55	16×6	135
S951013	KPLP35.35A	350	353	400	750	140	70	55	50	14×5.5	130
S951014	KPLP35.50A	500	353	550	900	140	70	60	55	16×6	175
S951015	KPLP40.35A	350	404	400	770	145	80				160
S951016	KPLP40.50A	500		550	920						205
S951017	KPLP40.60A	600		650	1020						240
S951018	KPLP40.75A	750		820	1200						300
S951019	KPLP50.50A	500	505	550	920	150	90	70	65	18×7	350
S951020	KPLP50.75A	750		820	1210						480
S951021	KPLP50.100A	1000		1100	1500						650

Model	M５×20Bolt	Nut	Nail
Effective Range（Example）			(mm)
KPLP20.30	60	50	100
KPLP32.50	70	60	200
