■Magnetic Separator MENU TOP

Permanent Magnetic Drum　KPLD



KPLP

Applications

Features

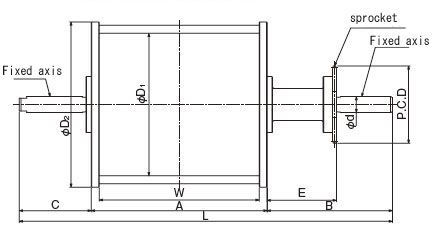

KPLP図面



Stock No. Model Dimensions(mm) Sprocket Recommended Revolutions（rpm） Weight
(kg)
φD1 W φD2 A B C E L ｄ Nominal Number Number
of
Teeth		 P.C.D
S950801 KPLD27.30A 267 300 310 330 235 135 130 700 30 40 34 137.64 30～45 35
S950802 KPLD32.40A 318 400 360 430 800 45 50 35 177.1 25～40 60
S950803 KPLD32.50A 500 530 900 70
S950804 KPLD32.60A 600 630 1000 80
S950805 KPLD40.50A 406 500 460 530 900 50 50 48 242.73 20～40 110
S950806 KPLD40.60A 600 630 1000 130
S950807 KPLD40.100A 1000 1030 1400 60 210
S950808 KPLD50.60A 508 600 560 640 250 150 125 1050 55 60 45 273.09 18～35 200
S950809 KPLD50.80A 800 840 1250 60 250
S950810 KPLD60.80A 610 680 850 80 35 283.36 15～30 360
