Slip-ring and carbon brush are the unit for supplying electricity to a round electromagnetic chuck.

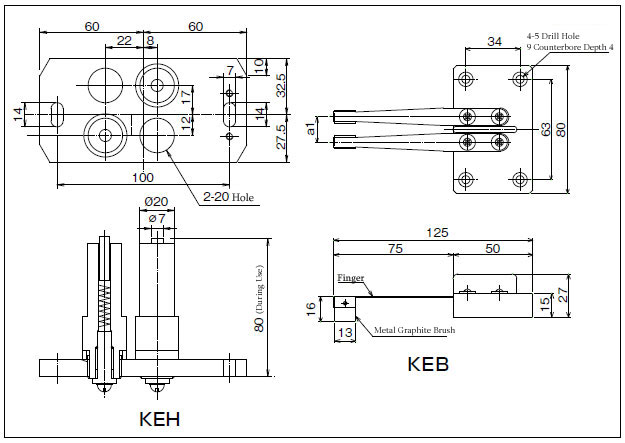

Hishiko supplies two types of slip-ring, KER and carbon
brush, KEB. Please choose the products which have same a1 pitch
(i.e. KER-1 and KEB-1)

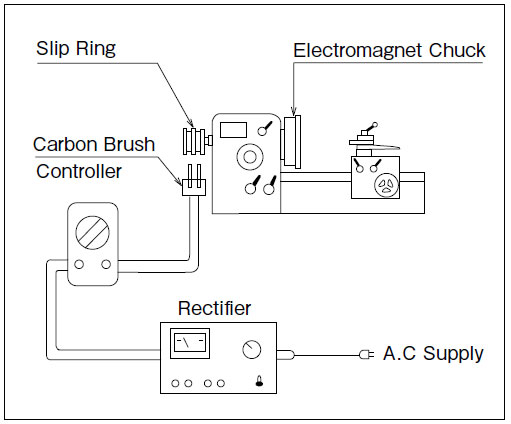

Electromagnet Chuck Connection example
| Stock No | Model | Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|---|
| φＤ1 | φＤ2 | φd Mounting Hole |
φd Max. Processable Diameter |
Ｌ1 | Ｌ2 | a1 | a2 | ||
| S982101 | KER-1 | 84 | 74 | 23 | 40 | 54 | 20 | 24 | 10 |
| S982102 | KER-2 | 100 | 94 | 28 | 60 | 40 | 15 | 16 | 8 |
