Permanent Lifting Magnet PLS



PLS

Applications

Features

PLSシリーズ

PLSPLN

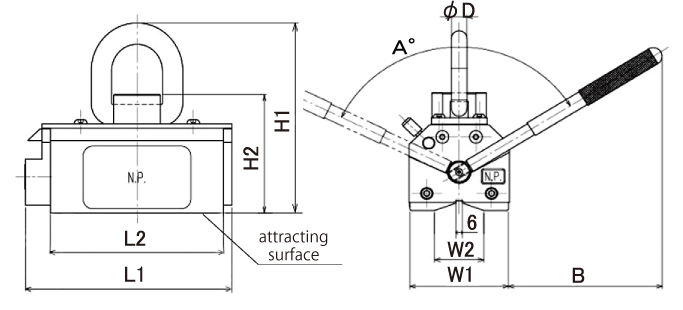

PLS図面



Stock No. Model Lifting
Capability*
(kgf)
Lifting
Capability
for Round Bar*
(kgf)
Diameter of
Round Bar
(φmm)
Dimensions
of Magnet (mm)
Angle Weigh
(Kg)
H1 H2 L W1 W2 φd A° B
S961346 PLS 100 100 50 50~100 150.5 95 132.5 70 6 14 120° 93 4
S961347 PLS 200 200 90 50~100 150.5 95 172.5 70 6 14 120° 93 6

S961350

PLS 300 300 125 60~160 168.5 110.5 193.5 90 6 14 122° 138 9
S961348 PLS 500 500 215 80~200 182 129.7 254.5 100 6 14 113° 112.5 17
S961351NEW PLS 600 600 270 80~200 183 129.5 296.5 100 6 14 113° 105.5 20
S961349 PLS1000 1000 450 100~350 242 171 355 120 6 21 146° 250 36
S961352NEW PLS1500 1500 675 100~350 247.3 171 510 120 6 21 147° 253.7 52
※SS400、Ra1.6(▽▽▽面)、t is over 60mm、Air gap 0mm ※※Upper temperature limit of main unit is 60 degree Celsius.
