Battery Lifting Magnet　KBLF600NA

BLF

Applications

Suitable for organizing/managing steel plate or steel products, material distribution work, loading or unloading of workpiece for large machine tool.

Features

By using battery for power supply, no fear of falling accident due to power failure.

Usable at wide range of job sites as a cable from AC power source is not required.

Safe and power saving design with no contact failure by semiconductor non-contact control circuit.

Red lamp and alarm buzzer notify the battery consumption rate.

Able to operate from distance by automatic (ON-OFF) device.

Automatic / Manual changeover system for operation.

BLF図面

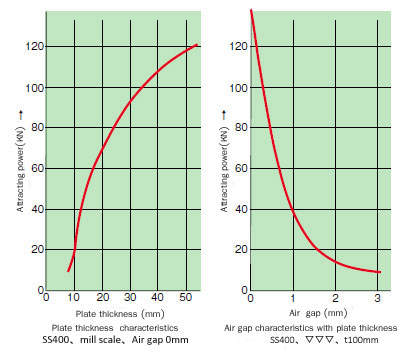

グラフ

◇Specifications

Stock No.	Model	Dimensions (mm)					Lifting Capacity	Weight(kg)
Stock No.	Model	W	L	H	d	t	Lifting Capacity	Weight(kg)
S960661	KBLF600NA	304	900	665	ø80	50	60KN(6000kgf)	360

Note:Lifting capacity is 1/2 of the maximum holding power. 　※SS400、

(▽▽▽）、t is over 50mm、Air gap 0mm

◇Duty Rating
Can be used for about 8 hours by the repetition of 5min ON and OFF

◇Accessories
・Battery Charger (for 100VAC 50/60Hz) ----- 1
・Battery with terminal and connecting cable ---2 (one set of them is installed)
・Battery Hydrometer ---------------------1

◇Lifting Capability
(The maximum size of the plate that KBLF can lift is as following. (SS400 with mill scale))

Model	Plate Thickness(mm)	Plate Width(mm)	Plate Length(mm)	Plate Weight(kg)	Capability(kg)
KBLF 600NA	12～200	100～1200	1200～2000	～3800	6000

Note: It is presume that there is no gap between magnet and steel plate.
